Bespoke BMS graphics · UK-wide

Your controls deserve
graphics this sharp.

Send us a points list and drawings — get back finished, intuitive Niagara / IQVISION pages: bespoke and ready to commission.

Get a quote See it live →
  • Real Niagara N4 / IQVISION pages
  • Bespoke to your site
  • Fast turnaround

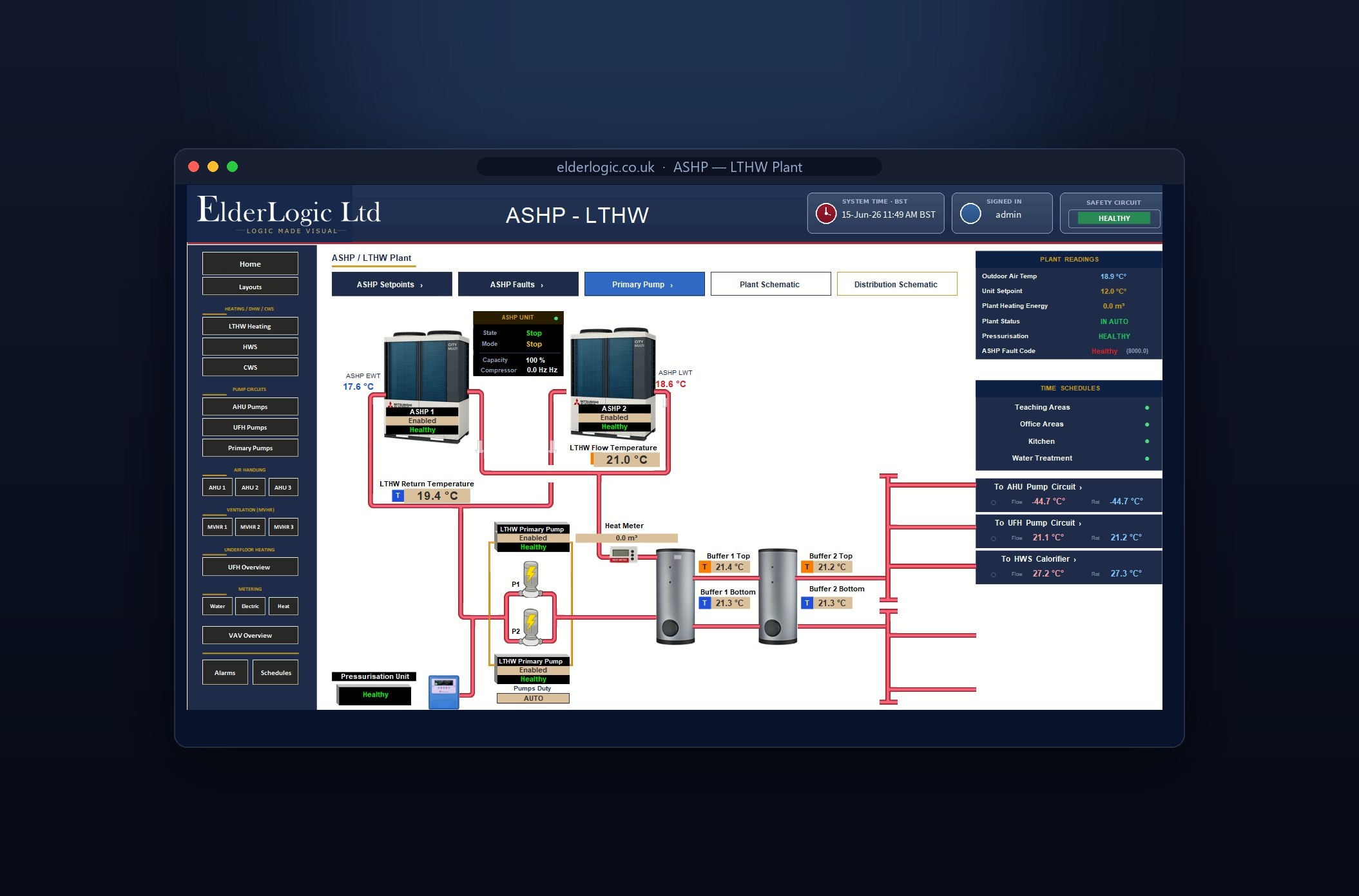

Elderlogic BMS dashboard — ASHP / LTHW plant schematic Live dashboard · watch it run
Built on·Trend·Tridium Niagara·IQVISION·BACnet·Modbus·ISMA

Services

End-to-end BMS graphics

Bespoke front ends, built around your site. From a single plant page to a full-site interface, every system is designed from your documentation, plant, building and operators.

Graphics pages
BMS graphics pages
Clear, operator-first dashboards.
Floor-plan graphics
Live zone data mapped onto building plans.
Plant pages
AHU · ASHP · LTHW · MVHR · HWS · CWS · pumps · UFH · VAV.
Metering dashboards
Heat, electricity & water consumption.
Operations & integration
Pop-ups & alarms
Drill-down detail, overrides & alarm pages.
User setup & comms
Roles, permissions & communications pages.
BACnet · ISMA · Modbus
Third-party device integration & points import.
Schedules & strategy
Time schedules & graphics-side strategy.

Where our work runs

From critical healthcare to heritage buildings, our front ends run across demanding sites where clear, reliable graphics matter most.

How we work

Work runs forward through five stages — but previews, sign-offs and live snags loop it back before handover. Tap any stage to see how a job really moves.

Start your project — get a quote
Clearer plant Faster fault-finding Fewer call-backs

Work

Live demonstration

A look through real BMS pages, with sample data — no client information shown.

Two real BMS stations — an LTHW boiler plant room (boilers, thermal stores, cold water, metering) and an AHU / MVHR / UFH ventilation estate — with drill-down pop-ups. Sample data, no client information shown.

Trend IQ5 onboard graphics

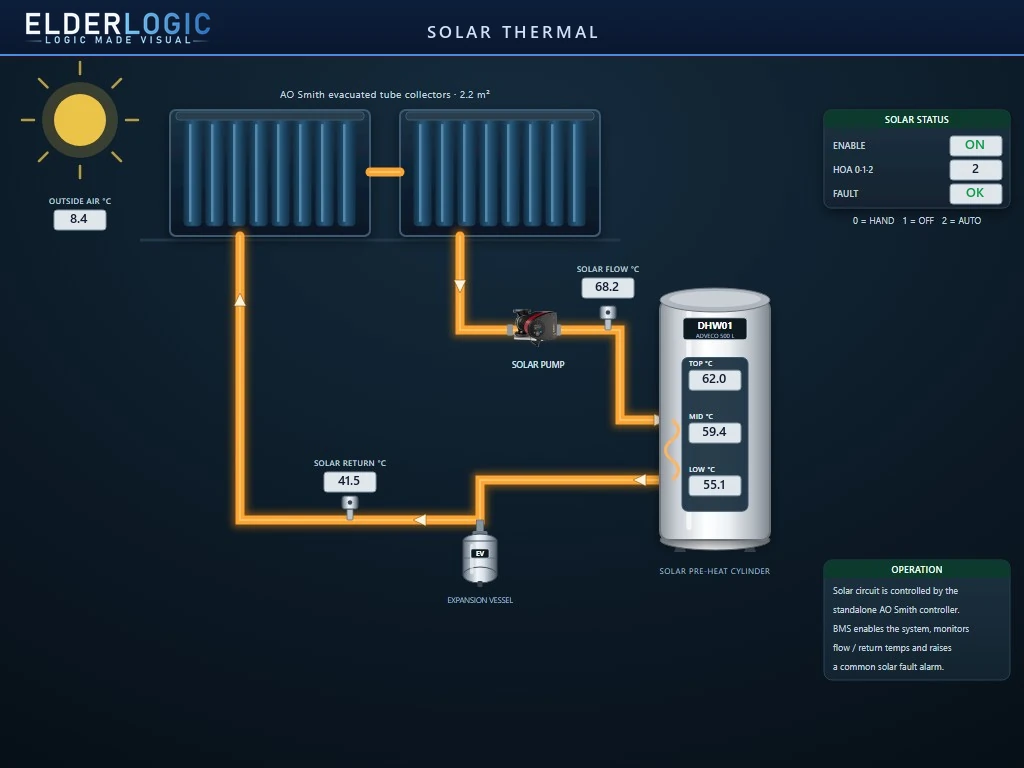

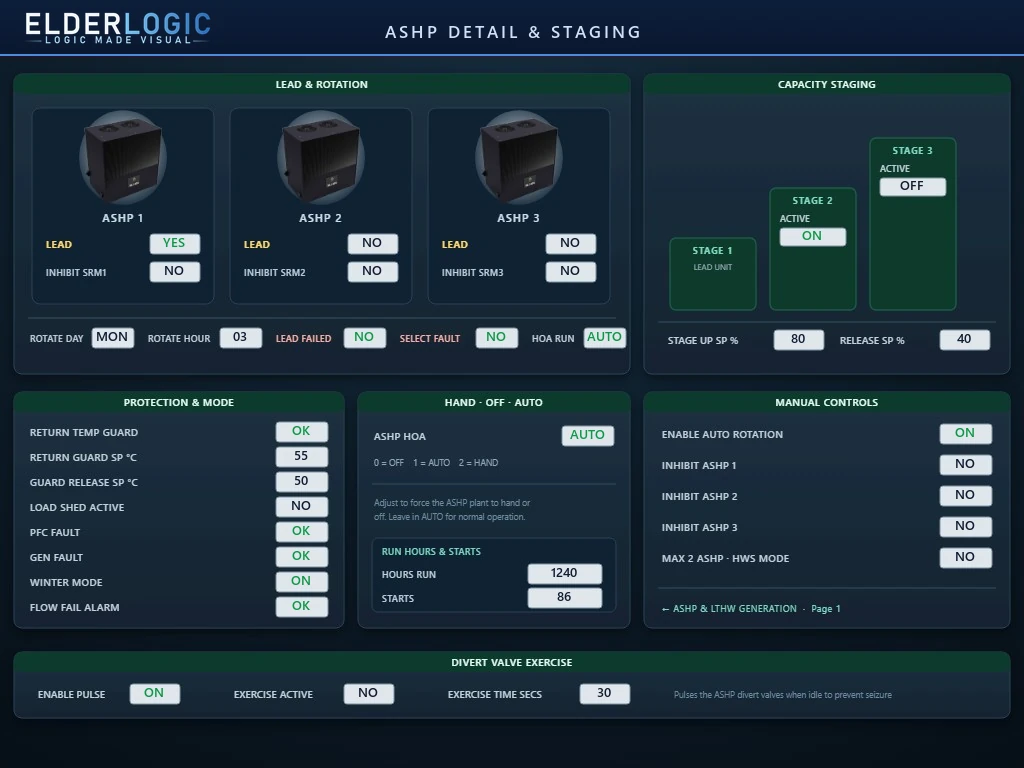

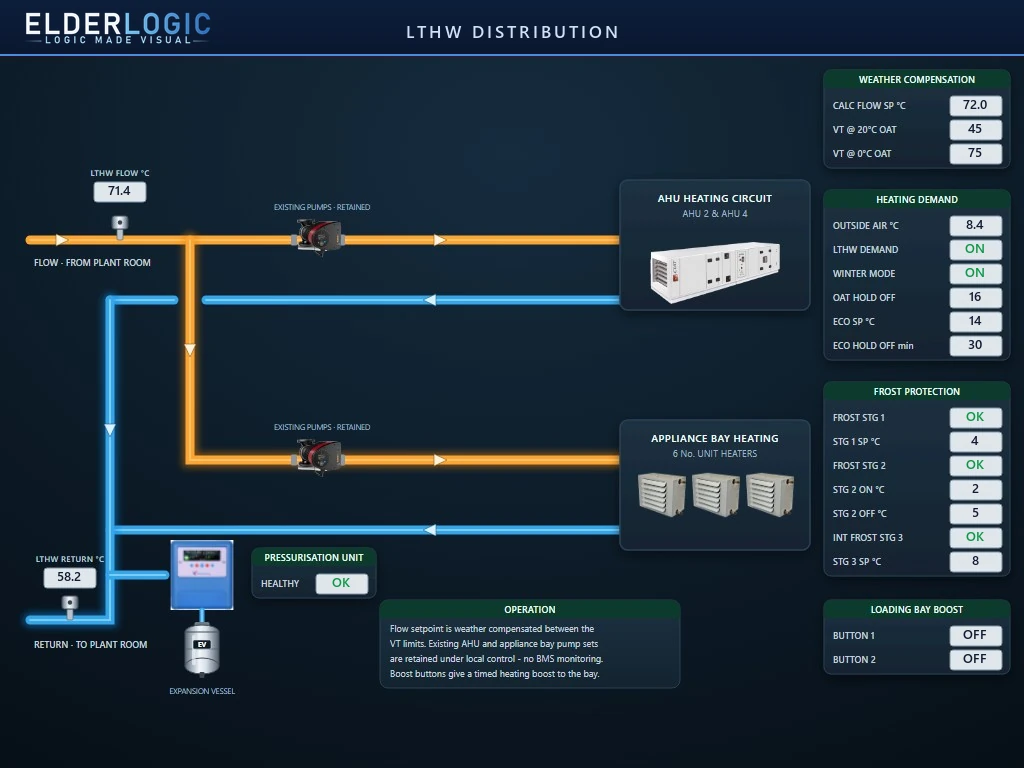

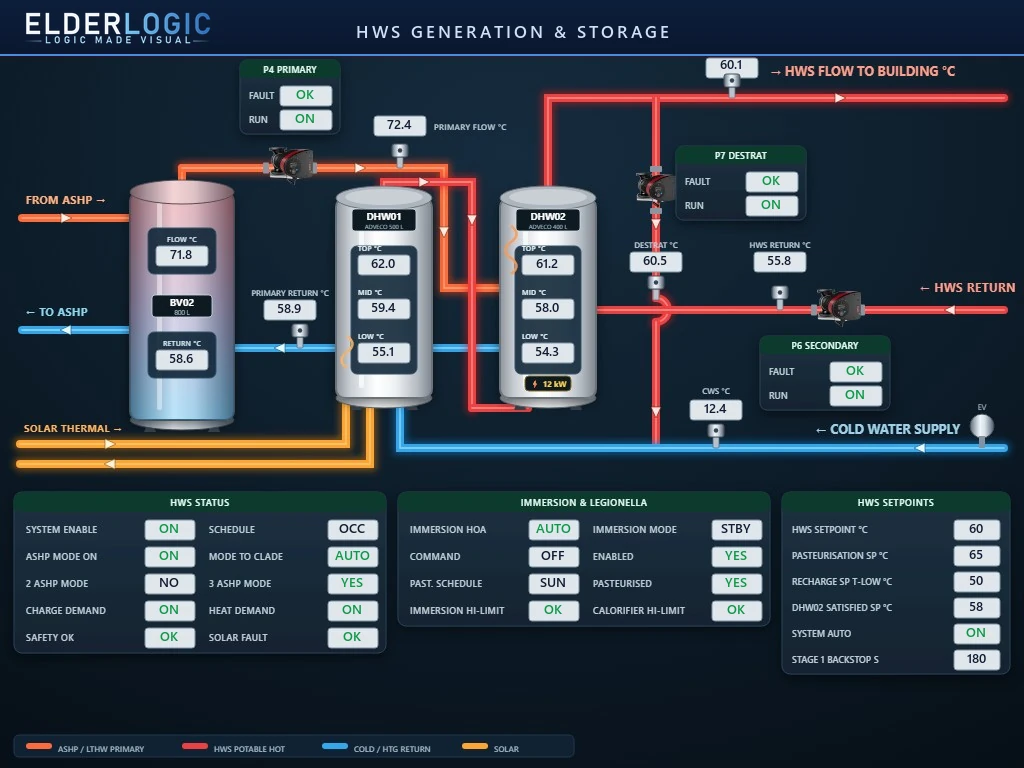

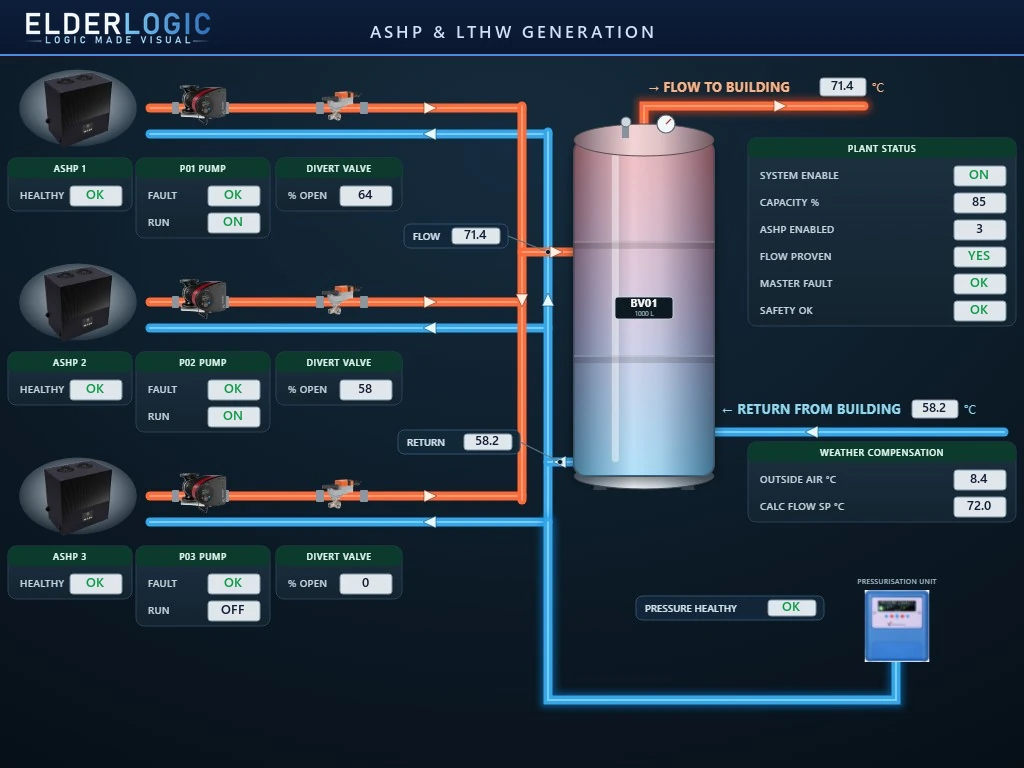

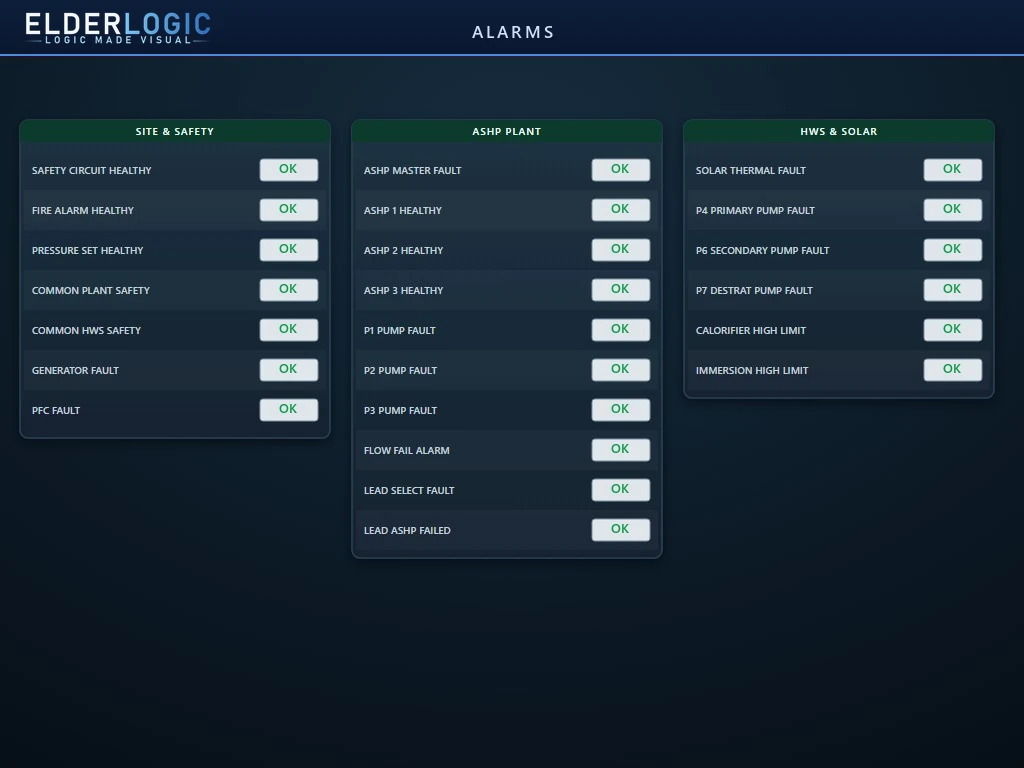

A complete IQ5 graphics set for a site energy centre — every plant page hosted straight on the Trend IQ controller's own web server, with no separate supervisor required. Air-source heat pumps, hot-water services, solar thermal, distribution and a whole-site alarm summary. Click any page to enlarge.

IQ5 controllerGraphics hosted on the Trend IQ controller itself. Ideal for one plant room or a small site that doesn't warrant a supervisor: browse straight to the controller.
IQVISION estateFor whole buildings and estates we build the full Tridium Niagara / IQVISION supervisor, with the richer graphics shown in the live demo above.

Reviews

Bespoke work in their words

Every Elderlogic front end is built from scratch around a single building, so no two are alike. Here's how that lands with the people who commission and use them.

Why Elderlogic

Specialists, not generalists.

BespokeEvery front end built around one building, so no two sites are alike.
AccurateRight first time — points mapped correctly and graphics that match the plant, so commissioning runs clean.
Care & craftWe genuinely care and take pride in every page, so your front end gets the attention it deserves.
IntuitiveOperator-first pages, clear at a glance — so plant is easier to run and faults faster to find.
Trend / NiagaraDeep IQVISION, BACnet, Modbus and ISMA experience.
FastQuick turnaround with milestone previews along the way.
Get a quote

Scope your project

Tell us roughly what your job involves: how many controllers, pages and pop-ups. Send it over and we'll come back with a firm quote tailored to your documentation.

PlatformThe system you're working on
Add-onsTap any that apply

Your brief

No obligation. We'll review your brief and reply with a firm quote. Sends to hello@elderlogic.co.uk.

FAQ

Common questions

Quick answers on platforms, how we work, and getting a quote.

What are BMS graphics?
BMS graphics are the on-screen pages that let people operate a building management system — plant schematics, floor plans, dashboards and alarm pages that turn raw controller data into something an operator can read and act on. ElderLogic builds these front ends for Trend, Tridium Niagara (IQVISION) and other platforms.
Which BMS platforms do you build graphics for?
Trend IQVISION and IQ5 onboard graphics, Tridium Niagara N4, and iSMA Controlli — with BACnet and Modbus integration. If you're not sure what your system runs, send us your documentation and we'll tell you.
Can you work as a subcontractor to our controls company?
Yes — most of our work is subcontracted to BMS and controls contractors. We're a graphics specialist only: we don't chase your controls work or your client. You send a points list and drawings, we send back finished, ready-to-commission pages.
Do you work remotely, and across the UK?
Most of the work is done remotely from your documentation, which keeps things fast and efficient — but we're happy to visit site or meet in person when a job calls for it. We work with contractors and end clients UK-wide.
What do you need to get started?
A points list and M&E drawings, or a station backup. From that we build bespoke graphics in your house style or ours, with milestone previews so you see it and sign off before handover.
How much do BMS graphics cost?
Every job is priced on its scope — the number of controllers, pages and pop-ups. Use the "Scope your project" tool above to outline your job and we'll come back with a firm quote, no obligation.
Contact

Let's talk about your project

Prefer email? Reach us directly:

hello@elderlogic.co.uk

Elderlogic Ltd. BMS graphics, delivered remotely across the UK. Subcontract to your firm, or direct with end clients.
